Barrier Gate
BS-DZ188
Front‑mounted red‑green LED light, BLDC 24V motor, max boom length reaches 6m.
Size (L*W*H):248.5*348*1060mm
BS-DZ188
BS-DZ188 Brushless DC Barrier Gate
Up to 6 m Boom | 24 V BLDC Motor | Red/Green Warning Light | 2 Million Cycles | IP54
The BISEN BS-DZ188 is a brushless DC automatic barrier gate for controlled vehicle entry and exit. It supports boom lengths up to 6 m, with the published open/close time matched to boom length. Its red/green warning light makes operating status visible at the lane.
Key Features
24 V / 120 W brushless DC motor with adjustable operating speed.
Red/green warning light for visible operating status.
Obstacle response: auto-reverse on obstruction.
Control functions: delayed closing and intelligent self-check.
Vehicle detection: loop-detector support; confirm the selected detector and wiring.

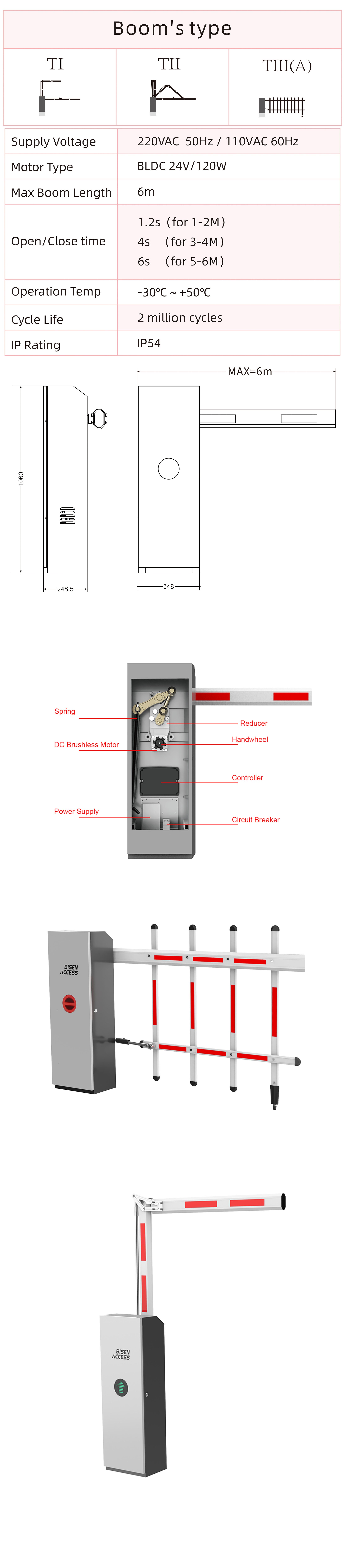

Specifications
Parameter | Specification |
|---|---|
Supply voltage | 220 V AC, 50 Hz / 110 V AC, 60 Hz |
Motor | BLDC 24 V / 120 W |
Maximum boom length | 6 m |
Open/close time | 1.2 s (1–2 m boom); 4 s (3–4 m); 6 s (5–6 m) |
Cycle life | 2 million cycles |
IP rating | IP54 |
Operating temperature | −30°C to +50°C |
Which Boom Do I Need?
Requirement | Selection / Check |
|---|---|
1–2 m boom | Catalogue operating time: 1.2 s |
3–4 m boom | Catalogue operating time: 4 s |
5–6 m boom | Catalogue operating time: 6 s |
Parking-system integration | Confirm controller interfaces and detector configuration |
FAQ
What is the maximum boom length of BS-DZ188? The catalogue specifies a maximum boom length of 6 m.
Is the shortest operating time available with a 6 m boom? No. The published times are 1.2 s for 1–2 m, 4 s for 3–4 m and 6 s for 5–6 m booms.
What is the rated cycle life? The catalogue specifies 2 million cycles. This is a cycle rating, not a warranty duration.
Can I connect vehicle detection or LPR equipment? Loop-detector support is listed. Ask BISEN to verify the detector, controller and LPR interfaces for your project.
About BISEN
BISEN SMART ACCESS is a China-based manufacturer of barrier gates, gate operators and access-control equipment, serving distributors, integrators and contractors worldwide.
Get a quote: Send the boom or fence length, lane width, required operating time, available headroom and installation environment.
