EV Charger
BS-EV01
Integrated EV‑charging terminal for data collection & system linkage.
(L*W*H)200mm*93mm*51.5mm
EV‑charging Control Terminal，Charging‑data Collection，System‑linkage Support，Charger Management Unit
BS-EV01 Series Portable EV Charger
Portable Plug-and-Play Format | 13 / 16 / 32 A Variants | 230 V AC | 5 m Cable | IP67
The BISEN BS-EV01 series is a portable EV charger range identified in the catalogue as BS-EV01-13A, BS-EV01-16A and BS-EV01-32A. It combines an in-cable control unit with electrical protection functions. Match the current configuration to the approved supply connection and vehicle.
Key Features
Portable charger format with plug-and-play operation.
Current configuration selection within the catalogue model range.
In-cable control box and charging-status display.
Protection functions include short circuit, overcurrent, leakage, overheating, overload, grounding and over/undervoltage protection.

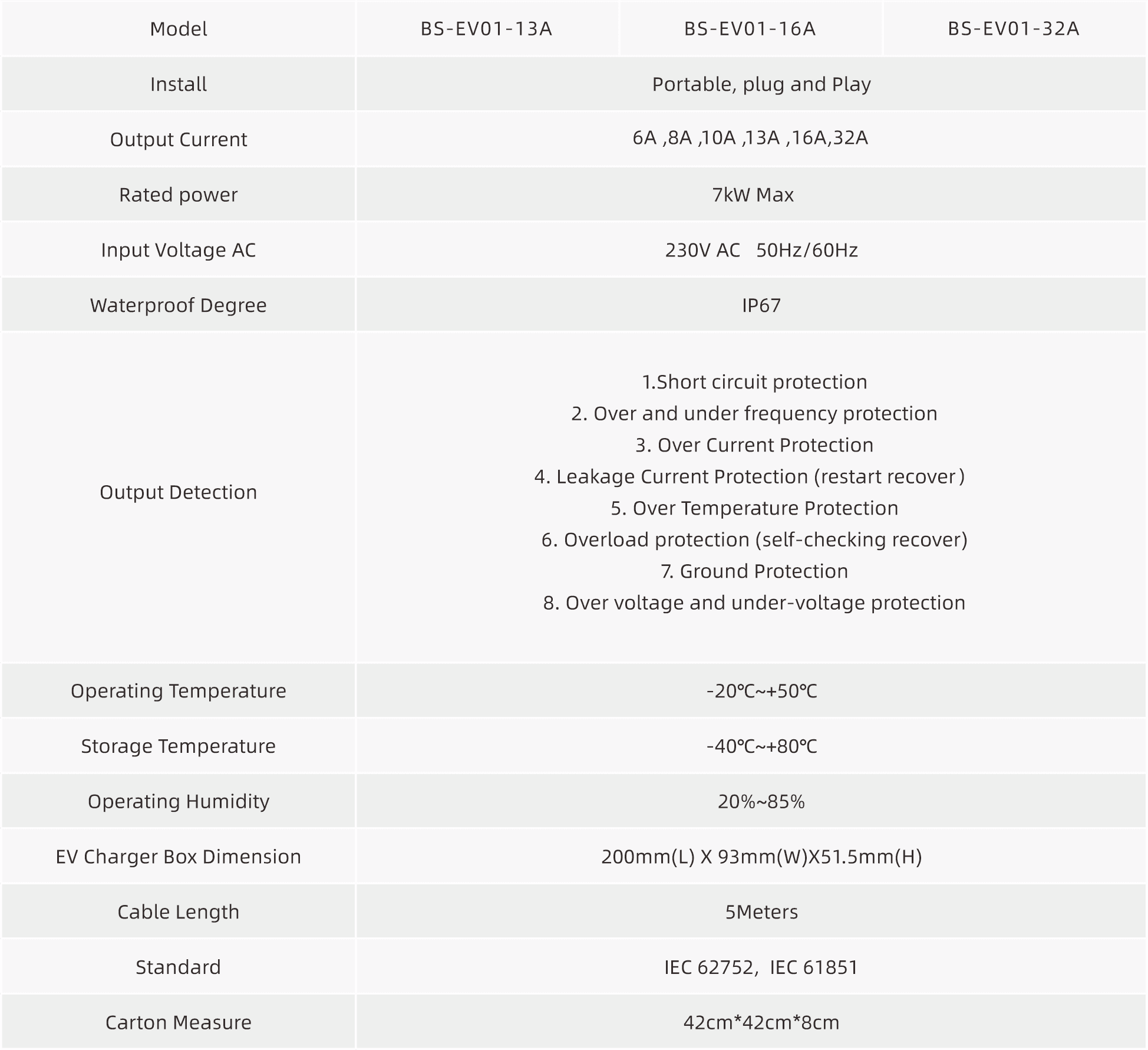

Specifications
Parameter | Specification |
|---|---|
Catalogue models | BS-EV01-13A / BS-EV01-16A / BS-EV01-32A |
Installation | Portable, plug and play |
Input | 230 V AC, 50/60 Hz |
Family current settings listed | 6 / 8 / 10 / 13 / 16 / 32 A; availability depends on the variant |
Family maximum power listed | 7 kW maximum; confirm variant-specific rated output |
IP rating | IP67 |
Control-box dimensions (L × W × H) | 200 × 93 × 51.5 mm |
Cable length | 5 m |
Operating temperature | −20°C to +50°C |
Operating humidity | 20–85% RH |
Which Charging Configuration Do I Need?
Requirement | Selection / Check |
|---|---|
Supply connection | Verify socket/plug rating and the available current |
Vehicle compatibility | Confirm connector and onboard AC charging requirements |
Current selection | Select the exact 13A, 16A or 32A model and permitted settings |
FAQ
What is the BS-EV01 series? It is a portable EV charger range with BS-EV01-13A, BS-EV01-16A and BS-EV01-32A configurations.
Does every version deliver 7 kW? No. The catalogue gives a family maximum; output is limited by the selected model, current setting, supply and vehicle.
Which cable length is listed? 5 m.
Can I assume every current setting is available on every version? No. Confirm the settings and approved supply connection for the exact variant.
