EV Charger
BSEV-DC80/120/160/240EU-D
EU‑certified DC fast EV charger with modular power for commercial outdoor charging stations.
Size (H*W*D):1650*930*585mm
EU‑certified DC Fast‑charger，Modular Power，Commercial Station Use，Outdoor EV Charging
BSEV-DC80/120/160/240EU-D DC EV Charging Station
80 / 120 / 160 / 240 kW Configurations | Dual Connectors | OCPP 1.6-J | IP54
The BISEN BSEV-DC EU-D series is a floor-standing DC charging station with 80, 120, 160 and 240 kW configurations. It combines dual charging connectors, Ethernet communication and OCPP 1.6-J. Select station power, grid capacity and connector requirements together.
Key Features
Four station power ratings: 80, 120, 160 and 240 kW.
Dual charging connectors with a catalogue cable length of 5 m.
7-inch touch screen, RFID-card and password start modes.
Ethernet and OCPP 1.6-J for supported system integration.
Electrical protections for over/undervoltage, short circuit, residual current, overheating and leakage.

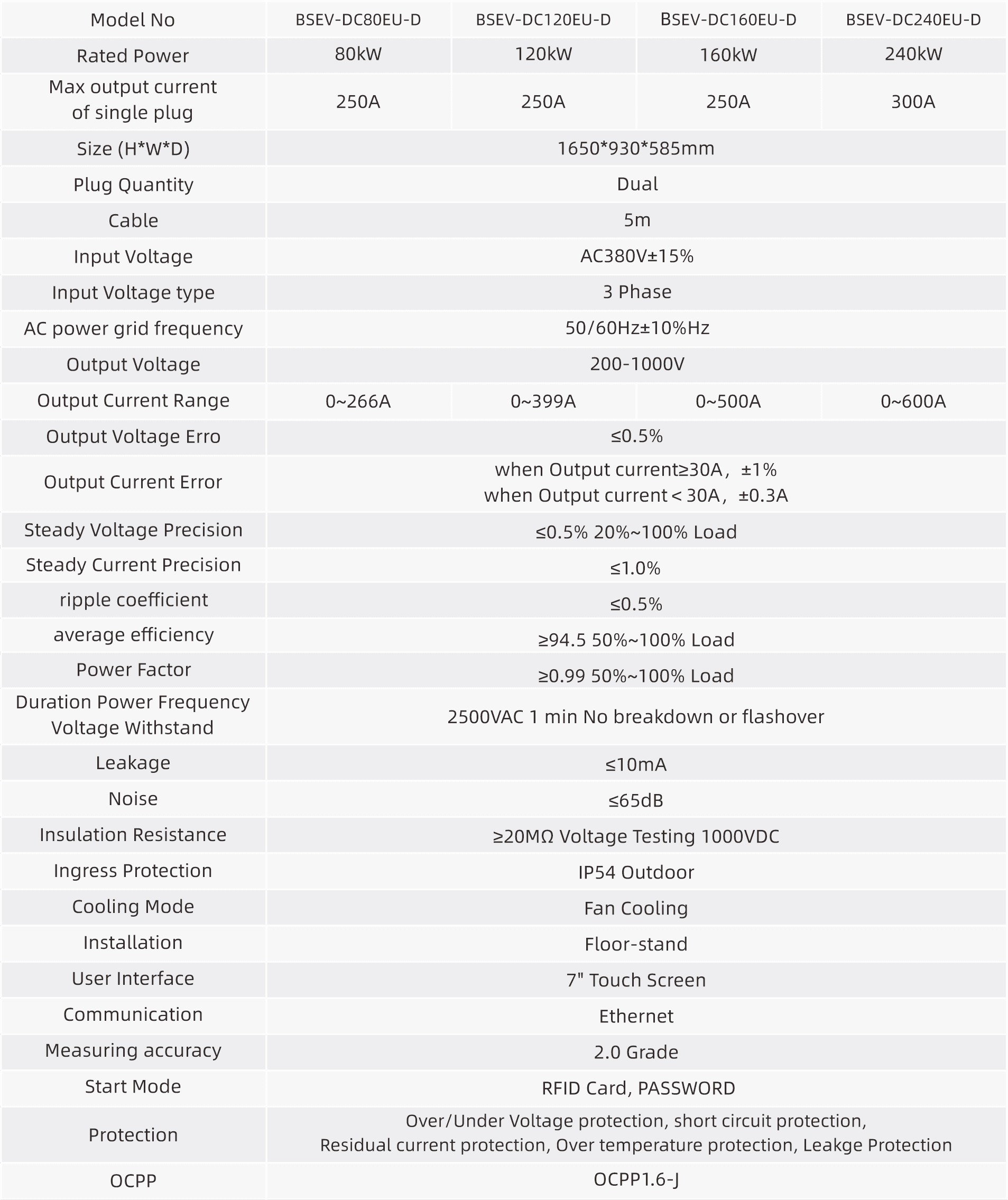

Specifications
Parameter | 80 kW | 120 kW | 160 kW | 240 kW |
|---|---|---|---|---|
Model | BSEV-DC80EU-D | BSEV-DC120EU-D | BSEV-DC160EU-D | BSEV-DC240EU-D |
Rated station power | 80 kW | 120 kW | 160 kW | 240 kW |
Maximum output current per connector | 250 A | 250 A | 250 A | 300 A |
Station output current range | 0–266 A | 0–399 A | 0–500 A | 0–600 A |
Input | 380 V AC ±15%, three-phase | 380 V AC ±15%, three-phase | 380 V AC ±15%, three-phase | 380 V AC ±15%, three-phase |
Output voltage | 200–1000 V DC | 200–1000 V DC | 200–1000 V DC | 200–1000 V DC |
Connectors / cable | Dual / 5 m | Dual / 5 m | Dual / 5 m | Dual / 5 m |
Interface / networking | 7-inch touch screen / Ethernet | 7-inch touch screen / Ethernet | 7-inch touch screen / Ethernet | 7-inch touch screen / Ethernet |
Protocol | OCPP 1.6-J | OCPP 1.6-J | OCPP 1.6-J | OCPP 1.6-J |
IP / installation | IP54 / floor-standing | IP54 / floor-standing | IP54 / floor-standing | IP54 / floor-standing |
Which Charging Configuration Do I Need?
Requirement | Selection / Check |
|---|---|
Site electrical capacity | Choose a rated station power that matches the engineered supply |
Two-connector operation | Confirm power sharing and vehicle compatibility |
Charging-platform integration | Verify the OCPP backend and connector standard |
FAQ
Is the power rating for each connector? The listed kW value is the station rating. The catalogue separately gives the maximum current per connector; confirm power sharing before ordering.
What electrical input is specified? 380 V AC ±15%, three-phase.
Does it support OCPP? The catalogue lists OCPP 1.6-J. Verify the selected backend and integration requirements.
Which connector standard and certification apply? Confirm the connector standard and request current compliance documents for the exact model and destination market.
