EV Charger
BSPC-AC07EU BSPC-AC22EU
EU‑compliant 7kW/22kW wall‑mounted AC EV charger for home & small‑business use.
(W*H*D)189*330*94.5mm
AC Wall‑box，Three‑phase Input，EU‑compliant，Household EV Charging
BSPC-AC07EU / BSPC-AC22EU AC EV Charger
7 kW Single-Phase / 22 kW Three-Phase | Card Start/Stop | 5 m Cable | IP54
The BISEN BSPC-AC07EU and BSPC-AC22EU are AC EV chargers for parking and building installations. The 7 kW model uses a single-phase supply; the 22 kW model uses a three-phase supply. Wall- and column-mounted arrangements are shown in the catalogue.
Key Features
Distinct single- and three-phase configurations.
IC-card start/stop with charging information on an LCD.
Three-color status indication for power, charging and faults.
Emergency stop in a visible position.
Short-circuit and leakage protection as listed in the catalogue.

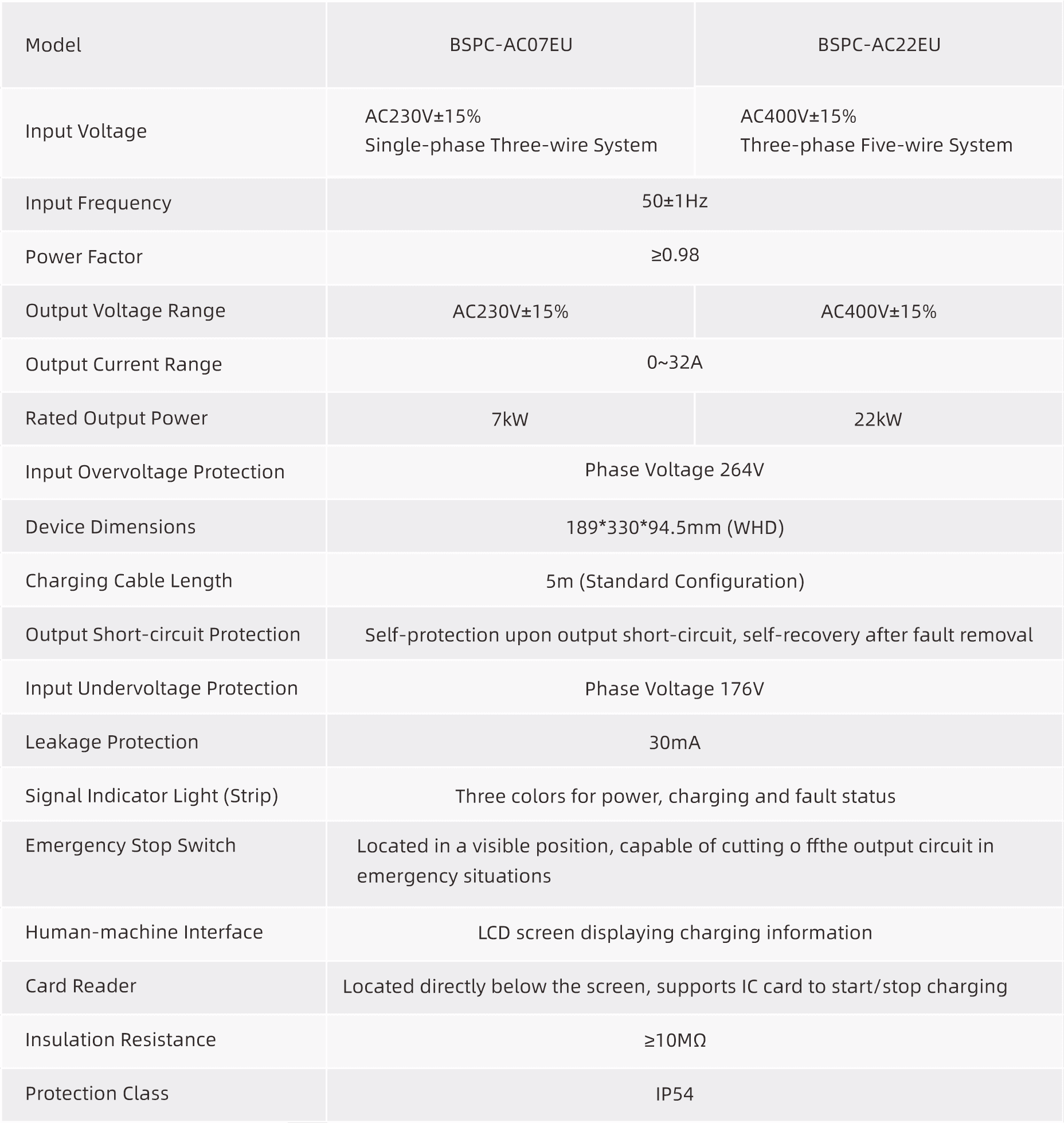

Specifications
Parameter | BSPC-AC07EU | BSPC-AC22EU |
|---|---|---|
Rated output power | 7 kW | 22 kW |
Input voltage | 230 V AC ±15% | 400 V AC ±15% |
Input system | Single-phase, three-wire | Three-phase, five-wire |
Input frequency | 50 ±1 Hz | 50 ±1 Hz |
Output voltage | 230 V AC ±15% | 400 V AC ±15% |
Output current range | 0–32 A | 0–32 A |
Cable length | 5 m, standard | 5 m, standard |
Dimensions (W × H × D) | 189 × 330 × 94.5 mm | 189 × 330 × 94.5 mm |
Interface | LCD / IC-card start-stop | LCD / IC-card start-stop |
IP rating | IP54 | IP54 |
Which Charging Configuration Do I Need?
Requirement | Selection / Check |
|---|---|
Single-phase installation | BSPC-AC07EU, 7 kW |
Three-phase installation | BSPC-AC22EU, 22 kW |
Mounting and vehicle compatibility | Confirm wall/column arrangement, connector and vehicle AC charging capability |
FAQ
Are both models three-phase? No. BSPC-AC07EU is single-phase; BSPC-AC22EU is three-phase.
Will every vehicle charge at 22 kW? Actual AC charging power also depends on the vehicle, electrical supply and selected configuration. Confirm compatibility before ordering.
How does charging start? The catalogue lists IC-card start/stop.
Can these AC models connect to an OCPP backend? OCPP support needs confirmation for these AC models. Contact BISEN to verify the required backend and communication configuration.
About BISEN
BISEN SMART ACCESS is a China-based manufacturer of barrier gates, gate operators and access-control equipment, serving distributors, integrators and contractors worldwide.
Get a quote: Send supply phase/voltage, vehicle AC charging capability, connector requirements, mounting position and access-control requirements.
