EV Charger
BSPC-DC20/30/40EU
EU‑standard compact DC EV charger for light‑commercial & parking‑lot charging
BSPC-DC20EU Size (H*W*D):770mm*500mm*217.5mm Outer Packing Dimensions (H*W*D):1065mm*555mm*430mm BSPC-DC30/40EU Size (H*W*D):770mm*582mm*217.5mm Outer Packing Dimensions (H*W*D):1065mm*637mm*430mm
EU‑standard Compact DC，Light‑commercial Scenario，Parking‑lot Deployment，EV Quick‑charge
BSPC-DC20/30/40EU Compact DC EV Charger
20 / 30 / 40 kW | 200–1000 V DC Output | Single Connector | OCPP 1.6-J | IP54
The BISEN BSPC-DC EU series is a compact DC charging range for parking installations. The 20, 30 and 40 kW models have distinct maximum output currents, with a single connector, 5 m cable and Ethernet/OCPP communication.
Key Features
Three DC power configurations with model-specific current limits.
Single connector and 5 m charging cable.
7-inch touch screen with RFID-card/password start modes.
Ethernet and OCPP 1.6-J for supported platform integration.
Emergency stop and catalogue-listed electrical protection functions.

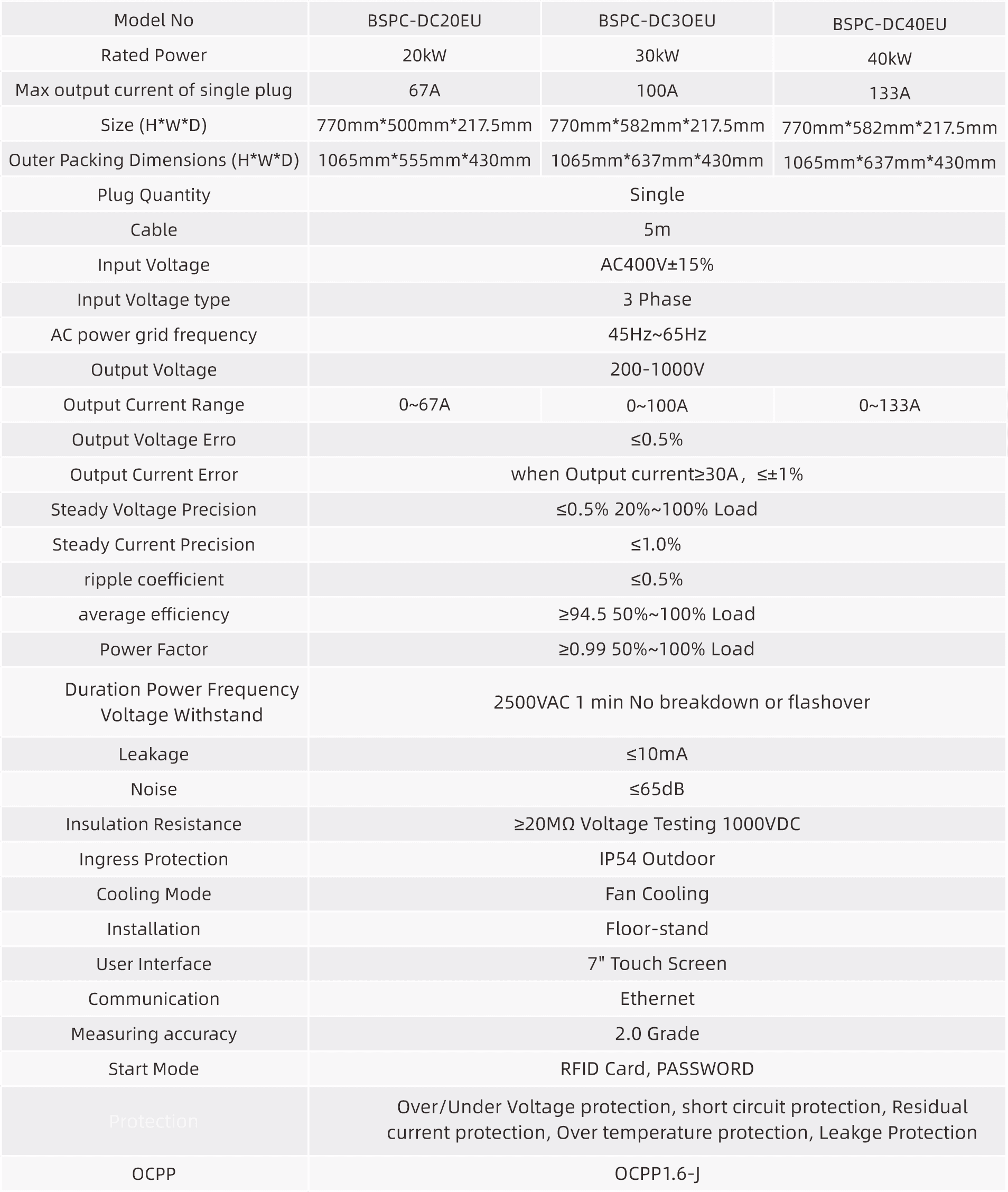

Specifications
Parameter | 20 kW | 30 kW | 40 kW |
|---|---|---|---|
Model | BSPC-DC20EU | BSPC-DC30EU | BSPC-DC40EU |
Rated output power | 20 kW | 30 kW | 40 kW |
Maximum output current | 67 A | 100 A | 133 A |
Input | 400 V AC ±15%, three-phase | 400 V AC ±15%, three-phase | 400 V AC ±15%, three-phase |
Input frequency | 45–65 Hz | 45–65 Hz | 45–65 Hz |
Output voltage | 200–1000 V DC | 200–1000 V DC | 200–1000 V DC |
Connector / cable | Single / 5 m | Single / 5 m | Single / 5 m |
Device dimensions (H × W × D) | 770 × 500 × 217.5 mm | 770 × 582 × 217.5 mm | 770 × 582 × 217.5 mm |
Interface / networking | 7-inch touch screen / Ethernet | 7-inch touch screen / Ethernet | 7-inch touch screen / Ethernet |
Protocol / IP | OCPP 1.6-J / IP54 | OCPP 1.6-J / IP54 | OCPP 1.6-J / IP54 |
Which Charging Configuration Do I Need?
Requirement | Selection / Check |
|---|---|
20 kW requirement | BSPC-DC20EU; check 67 A maximum output |
30 / 40 kW requirement | Select 100 A / 133 A maximum output configuration |
Physical installation | Confirm the mounting arrangement and device dimensions |
FAQ
How do the three models differ? Rated power is 20/30/40 kW and maximum output current is 67/100/133 A respectively. The 20 kW cabinet is narrower.
What supply is specified? 400 V AC ±15%, three-phase, 45–65 Hz.
Is this an AC wallbox? No. It supplies DC output, with a catalogue output-voltage range of 200–1000 V.
What is required for platform integration? Confirm the OCPP 1.6-J backend, network connection, connector standard and vehicle requirements.
About BISEN
BISEN SMART ACCESS is a China-based manufacturer of barrier gates, gate operators and access-control equipment, serving distributors, integrators and contractors worldwide.
Get a quote: Send grid capacity, required DC power, vehicle/connector standards, mounting arrangement and OCPP backend details.
