Industrial Door Operator
BS-KGT16DC
DC brushless sectional operator, encoder‑limit, adjustable‑speed & Bisen‑cloud IoT.
Motor dimension:320×103×200mm. DC brushless industrial door operator, max door area＜30㎡.
DC Brushless Motor，Encoder Precise Limit，Speed‑adjustable，Bisen‑Cloud LOT Remote
BS-KGT16DC Industrial Door Operator
Brushless DC Drive | 75 / 120 N·m | Variable 15–50 rpm | 6 m Lifting Height
The BISEN BS-KGT16DC is an industrial door operator family selected by output torque, electrical supply and door area. The catalogue configurations below have distinct ratings; match the exact order code to the door balance, shaft and lifting arrangement.
Key Features
Brushless DC drive with encoder limit control.
Variable output speed: 15–50 rpm.
Manual conversion handle for operation during power failure.
Intelligent self-check and emergency stop.
External safety-device connections for a compatible pressure edge, infrared detector and warning light.

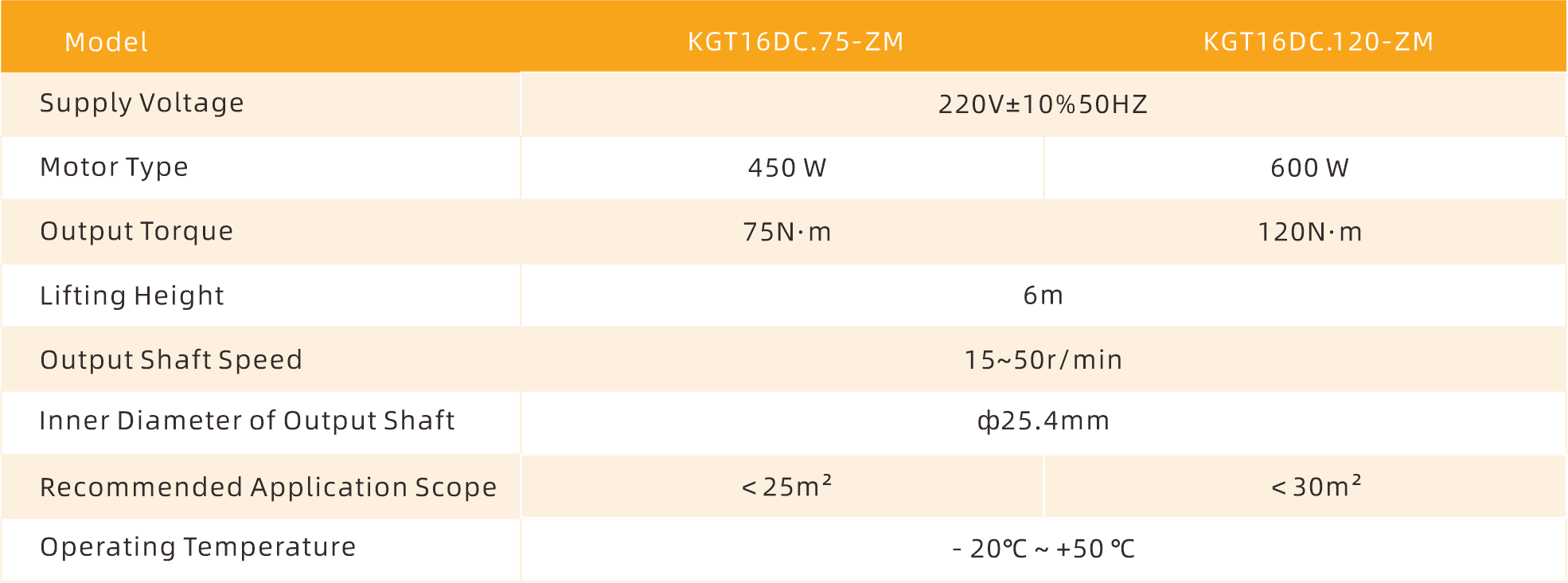

Specifications
Parameter | KGT16DC.75-ZM | KGT16DC.120-ZM |
|---|---|---|
Supply voltage | 220 V AC ±10%, 50 Hz | 220 V AC ±10%, 50 Hz |
Motor power | 450 W | 600 W |
Output torque | 75 N·m | 120 N·m |
Output speed | 15–50 rpm | 15–50 rpm |
Maximum lifting height | 6 m | 6 m |
Door area | <25 m² | <30 m² |
Output shaft bore | 25.4 mm | 25.4 mm |
Operating temperature | −20°C to +50°C | −20°C to +50°C |
Which Configuration Do I Need?
Requirement | Selection / Check |
|---|---|
75 N·m / door area <25 m² | KGT16DC.75-ZM |
120 N·m / door area <30 m² | KGT16DC.120-ZM |
Shaft installation | Confirm 25.4 mm bore and mounting arrangement |
FAQ
How is the correct configuration selected? Use the required output torque, compatible door area, supply voltage and shaft geometry together. Confirm the door balance and installation drawing.
Are 220 V and 380 V versions interchangeable? No. Select the exact supply-voltage configuration in the table.
Does maximum door area apply to every version? No. The door-area limit is configuration-specific and must be checked with torque and installation conditions.
Can external safety devices be connected? Pressure-edge, infrared detector and warning-light connections are supported; confirm the controller and devices.
About BISEN
BISEN SMART ACCESS is a China-based manufacturer of barrier gates, gate operators and access-control equipment, serving distributors, integrators and contractors worldwide.
Get a quote: Send door area and height, door balance/type, shaft dimensions, required torque, supply voltage and safety-device requirements.
