BS-CWS22
Antioccupancy Parking Lock

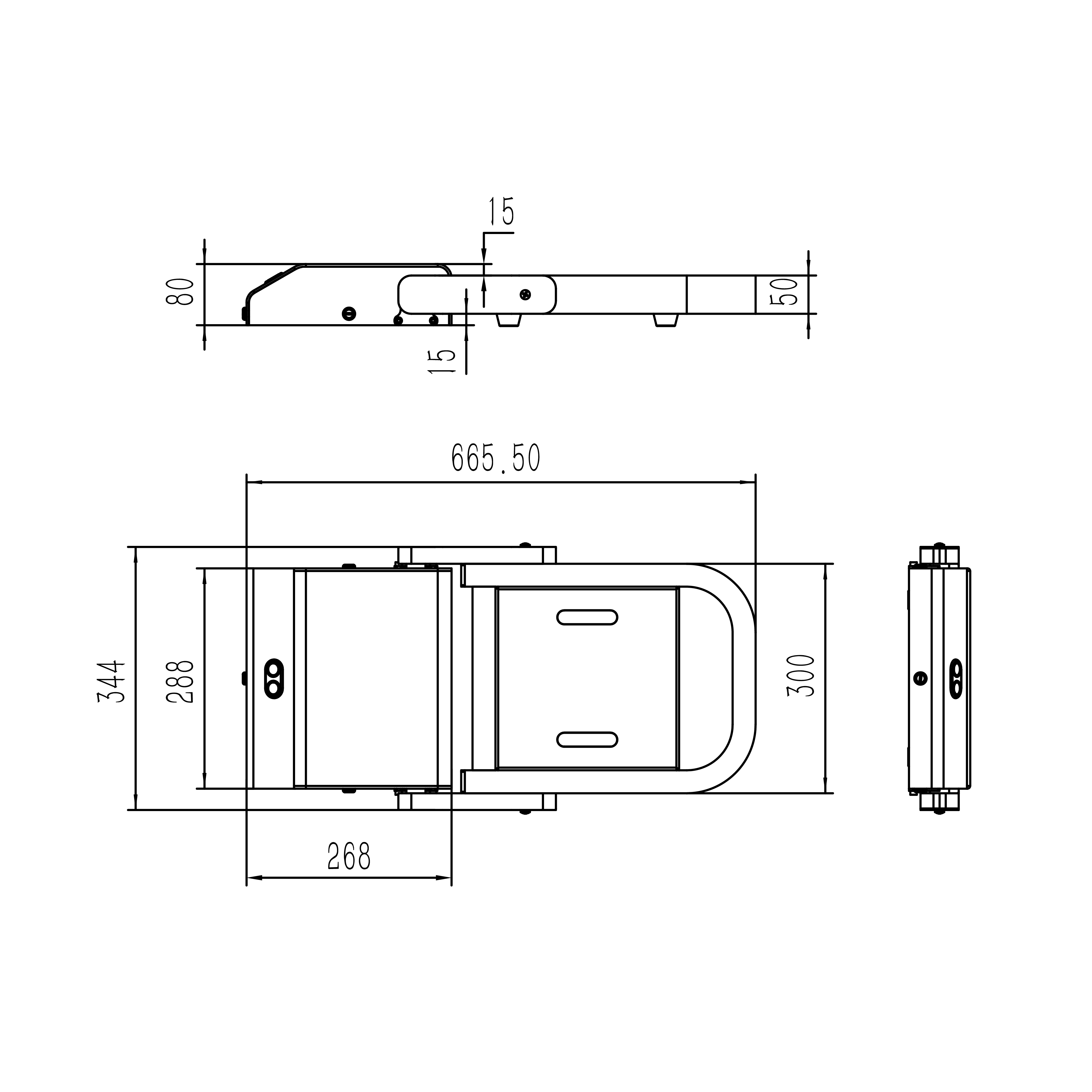

Size (L*W*H):665.5*344*80mm
BS-CWS22
BS-CWS22 Parking Space Lock
Ultrasonic Detection | Built-in Strobe Light | 24 V DC | 2.5–5 s
The BISEN BS-CWS22 is a parking space lock for anti-occupancy management at charging bays and reserved spaces. Ultrasonic sensing, obstruction response and a built-in high-brightness strobe support vehicle detection and visible warning.
Key Features
Ultrasonic vehicle sensing.
Built-in high-brightness strobe light for nighttime warning.
Brushless DC drive.
Obstruction detection and reverse with a built-in Hall switch.

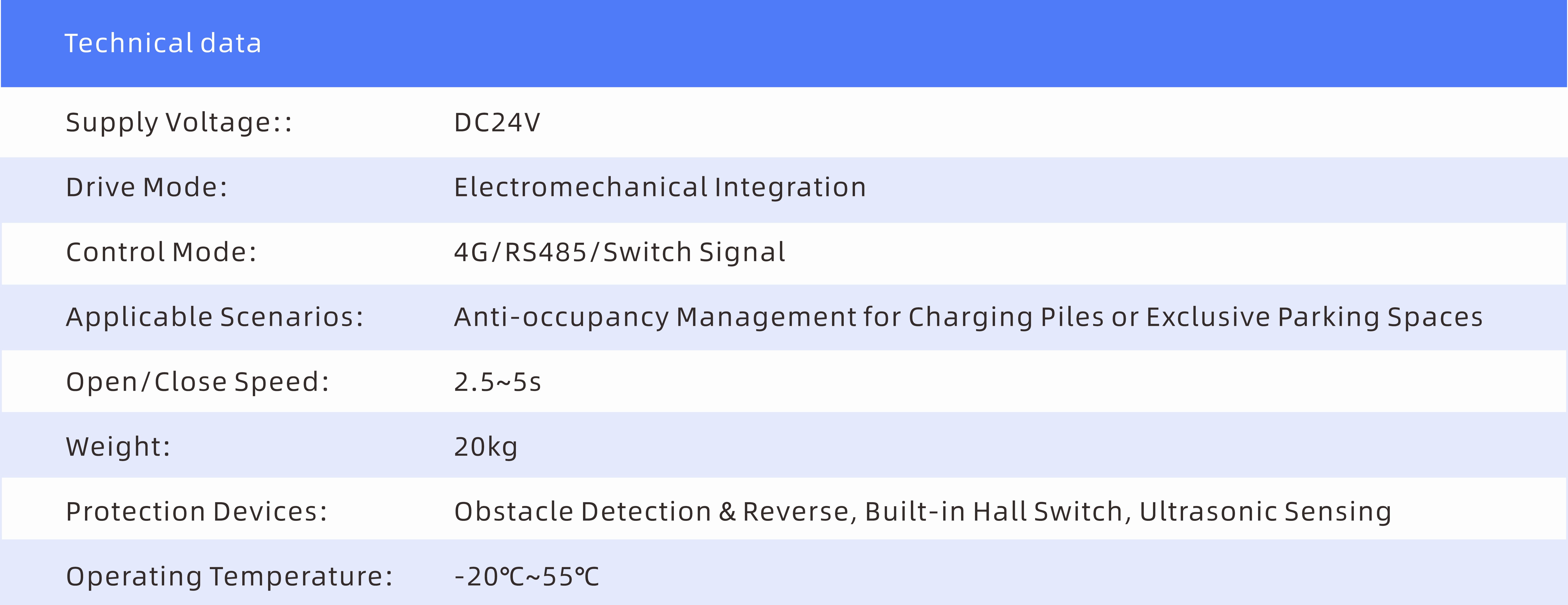

Specifications
Parameter | Specification |
|---|---|
Supply voltage | 24 V DC |
Drive mode | Electromechanical |
Control | 4G / RS485 / switch signal |
Open/close time | 2.5–5 s |
Vehicle detection | Ultrasonic |
Protection devices | Obstruction detection and reverse; built-in Hall switch |
Weight | 20 kg |
Operating temperature | −20°C to +55°C |
Which Configuration Do I Need?
Requirement | Selection / Check |
|---|---|
Reserved parking space | Confirm vehicle clearance and access rules |
EV charging bay | Confirm charger/platform linkage before specifying |
Remote or local control | Select the required 4G, RS485 or switch-signal interface |
FAQ
Is this intended for charging bays? The catalogue lists anti-occupancy management for charging bays or exclusive parking spaces.
What warning light is listed? A built-in high-brightness strobe light.
How long does it take to operate? The published open/close time is 2.5–5 s.
Does it have a certified crash rating? No certified crash rating is established by the supplied data; request relevant testing if your project requires it.
About BISEN
BISEN SMART ACCESS is a China-based manufacturer of barrier gates, gate operators and access-control equipment, serving distributors, integrators and contractors worldwide.
Get a quote: Send the lane or parking-space layout, product configuration, power/network availability and required parking-platform interfaces.
