Pedestrian Gate
BS-FR08L-HS
Dual-camera face terminal with liveness detection, local & cloud deployment.
Device dimension:242×133×22 mm. Dual‑camera face recognition access terminal, max.24000 face capacity, DC12V/2A power supply.
Dual‑camera Liveness Detection，Large Face Capacity，WiFi & Ethernet，IP65/IP66 Protection
BS-FR08L-HS Face Recognition Access Terminal
Binocular Liveness Detection | 24,000 Faces | 8-inch Touch Screen | IP66
The BISEN BS-FR08L-HS is a binocular face recognition terminal for access control. It supports liveness detection, local recognition records and front-touchscreen registration and configuration. The catalogue lists an 8-inch screen, 24,000-face capacity and IP66 protection.
Key Features
Binocular liveness detection.
Strong-backlight operation support, as listed in the feature sheet.
Local recognition-record storage.
Front touchscreen for registration, device configuration and record queries.

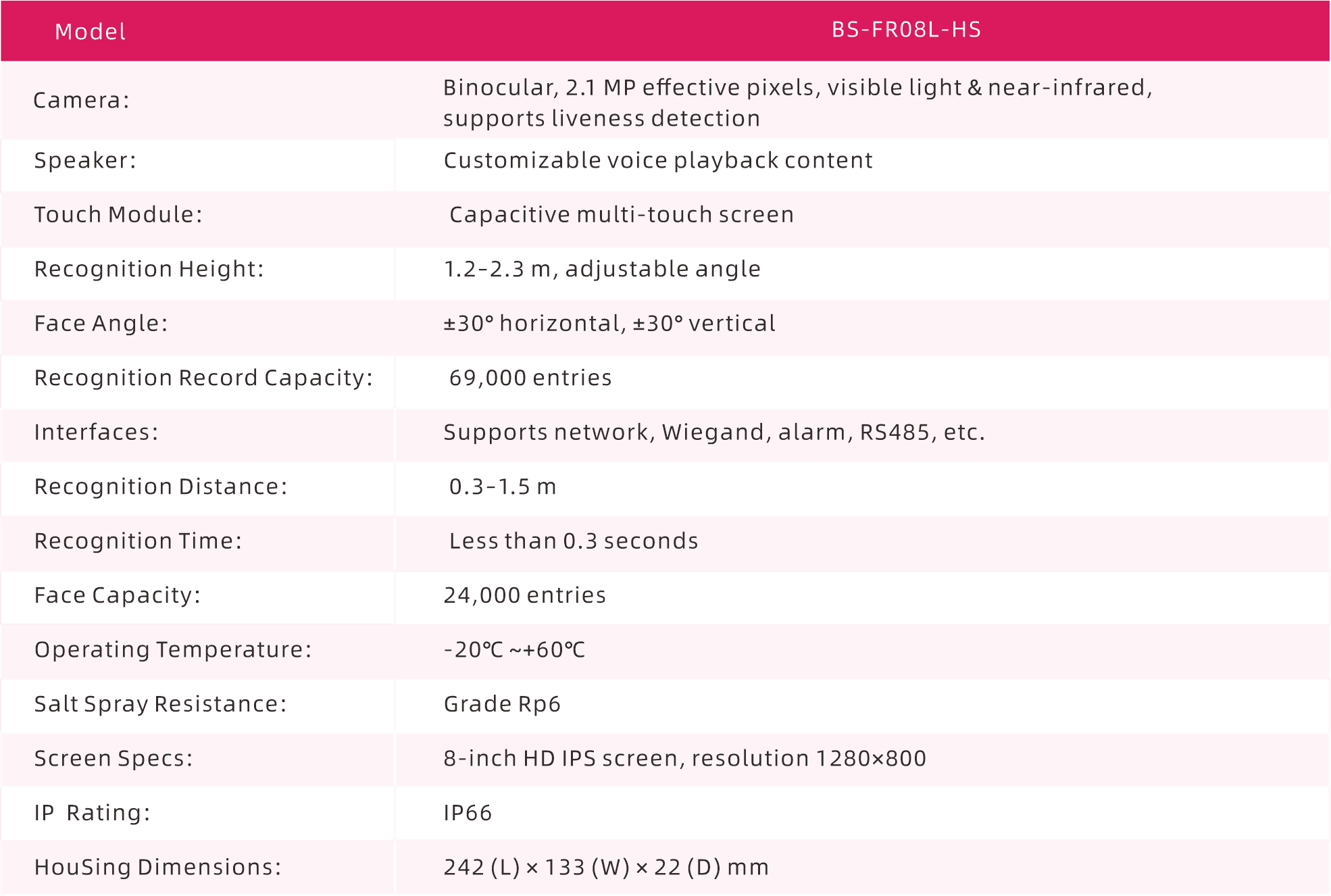

Specifications
Parameter | Specification |
|---|---|
Camera | Binocular, 2.1 MP effective pixels, visible and near-infrared |
Screen | 8-inch HD IPS, 1280 × 800 |
Face capacity | 24,000 entries |
Recognition records | 69,000 entries |
Recognition distance | 0.3–1.5 m |
Recognition time | <0.3 s, catalogue specification |
Recognition height | 1.2–2.3 m, angle adjustable |
Interfaces | TCP/IP, Wiegand, alarm output, RS485 |
IP rating | IP66 |
Operating temperature | −20°C to +60°C |
Dimensions (L × W × D) | 242 × 133 × 22 mm |
Which Installation Do I Need?
Requirement | Selection / Check |
|---|---|
User and event capacity | Check 24,000-face and 69,000-record limits |
Mounting position | Match the stated recognition distance and height |
Controller connection | Verify the required TCP/IP, Wiegand, alarm or RS485 interface |
FAQ
How many faces can it store? The catalogue specifies 24,000 face entries.
Does it retain records locally? Yes. Local record storage is listed, with 69,000 recognition records in the catalogue.
What is the ingress protection rating? The specified ingress protection rating is IP66.
Can users register at the terminal? Yes. The product supports touchscreen registration and device configuration.
About BISEN
BISEN SMART ACCESS is a China-based manufacturer of barrier gates, gate operators and access-control equipment, serving distributors, integrators and contractors worldwide.
Get a quote: Send the user capacity, recognition/mounting position, lighting conditions and access-controller interfaces.
