Pedestrian Gate
BS-MV01
Contact‑free palm‑vein terminal with AI, for embedded install & SDK secondary‑dev.
Device dimension:86×86×30 mm. Contact‑free palm‑vein recognition terminal, max.200000 access records, DC12V/2A power supply.
Contact‑free Palm‑vein，360° Recognition，Embedded Installation，SDK Supported
BS-MV01 Palm Vein Recognition Terminal
Contactless Palm Vein Recognition | Liveness Detection | Wall/Embedded Installation | 12 V DC
The BISEN BS-MV01 is a contactless palm vein recognition terminal for access-control applications. It supports liveness detection and wall-mounted or embedded installation. Select the template capacity, communication interfaces and installation format for the project.
Key Features
Contactless palm vein recognition with liveness detection.
Internal vein-pattern recognition rather than a surface-touch input.
Wall-mounted and embedded installation support.
Selectable storage capacities and interfaces according to the ordered configuration.

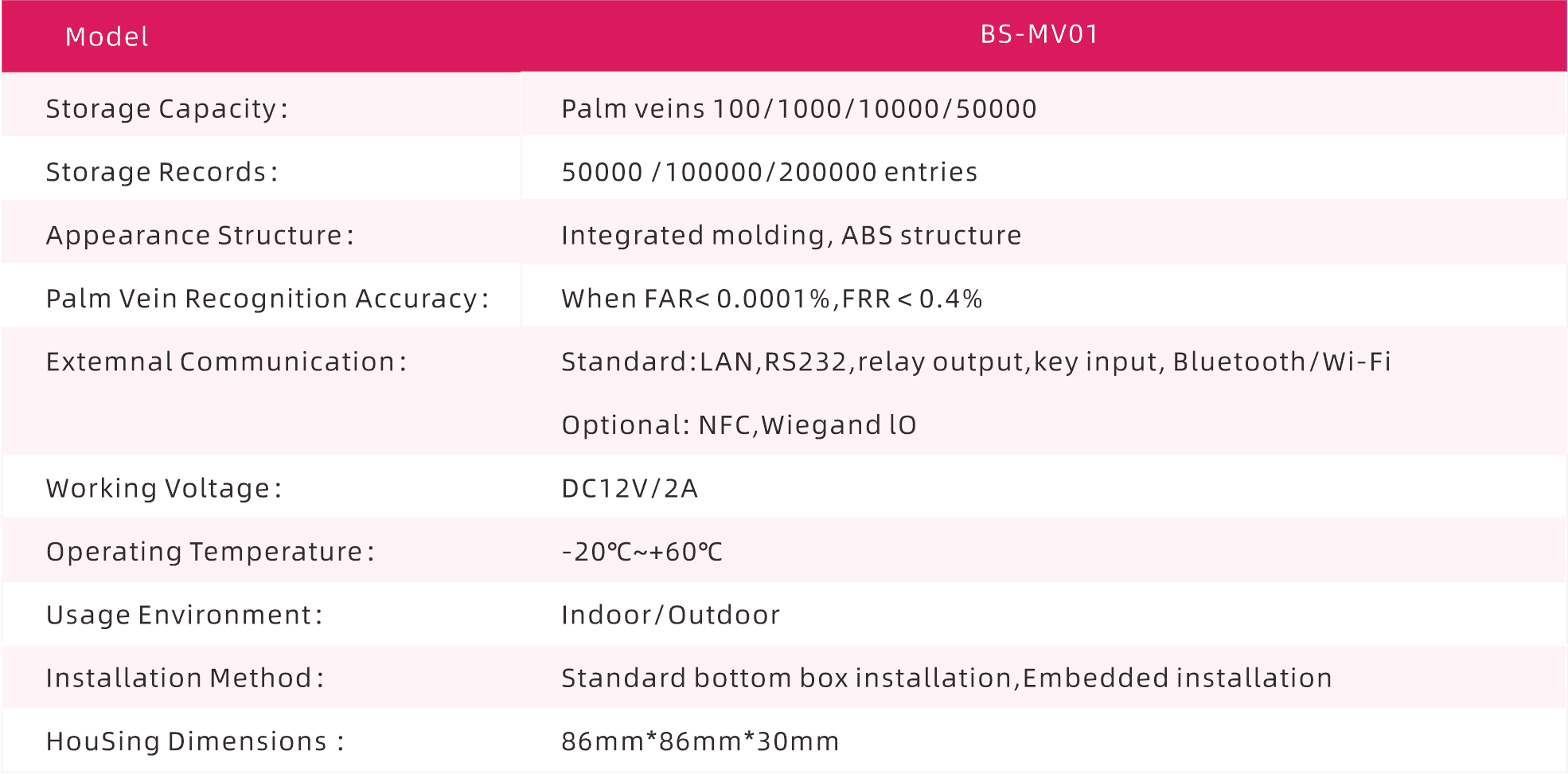

Specifications
Parameter | Specification |
|---|---|
Palm template capacity options | 100 / 1000 / 10,000 / 50,000 |
Record storage options | 50,000 / 100,000 / 200,000 entries |
Supply | 12 V DC / 2 A |
Standard communication | LAN, RS232, relay output, key input, Bluetooth / Wi-Fi |
Optional communication | NFC, Wiegand I/O |
Housing | ABS, integrated molding |
Dimensions | 86 × 86 × 30 mm |
Operating temperature | −20°C to +60°C |
Which Installation Do I Need?
Requirement | Selection / Check |
|---|---|
User population | Choose the required palm-template capacity |
Event history | Select the record-storage option |
Access controller | Check relay, serial, LAN or optional Wiegand/NFC requirements |
FAQ
Must a user touch the reader? No. The product is specified as contactless recognition.
Are all storage options included simultaneously? No. The listed capacities are configuration options; confirm the ordered version.
Is Wiegand standard? The catalogue lists Wiegand I/O as optional.
Can it be embedded in another device? Embedded installation is listed; confirm the mechanical arrangement and interfaces with BISEN.
About BISEN
BISEN SMART ACCESS is a China-based manufacturer of barrier gates, gate operators and access-control equipment, serving distributors, integrators and contractors worldwide.
Get a quote: Send the user/template capacity, event-record capacity, mounting format and required controller interfaces.
